Renogy 12V 100Ah Deep Cycle Hybrid GEL Battery with Battery Box

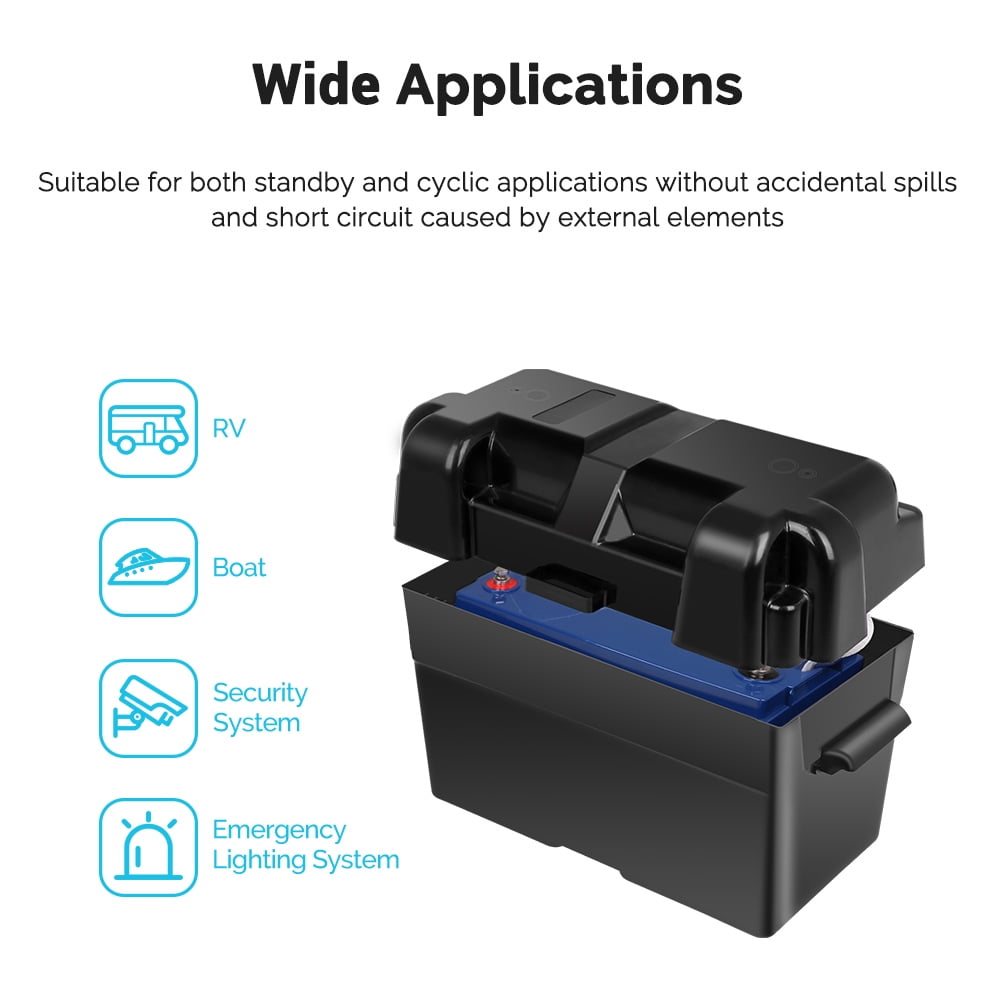

The Renogy 12V Deep Cycle Hybrid GEL Battery is ideal for both standby and cyclic applications in extreme environments. Maintenance-free and leak-proof, it can reliably supply emergency power to security systems and emergency lighting systems, helping prevent any damage that may be caused by a sudden loss of primary electricity. It is also suitable for RVs and boats, where repeated charges and discharges are highly required, given its long service life and outstanding cycle capacity. Moreover, with its high power-to-weight ratio, it can provide maximum storage for any solar or wind system. With the finest materials, state-of-the-art production techniques, and the strictest quality control procedures, Renogy Hybrid GEL batteries aim to provide the most reliable, convenient, and economic rechargeable battery solution. Included with your purchase is a Heavy-duty Battery Box to limit battery movement, prevent accidental spills, and protect from external elements. This heavy-duty box uses high impact-resistant polypropylene for reliable protection while tackling rugged environments. On the top of the battery box are vent holes to allow for adequate ventilation. The battery box includes a tie-down strap and brackets for easy installation in a car, boat, camper, motorhome, trailer, or caravan. Should you need to connect several batteries in series/parallel to build a battery bank, Renogy offers the Battery Interconnect Cables (not included) in different lengths for your convenience. NOTE: ? We recommend only using consistent battery types. DO NOT mix Hybrid GEL and Pure GEL batteries together as it will reduce overall performance and may cause damage to the battery bank. ? It is recommended not to discharge the battery below 50%, doing so may shorten the battery's cycle life. ? A battery balancer is highly recommended to extend the battery's service life when multiple batteries are connected in series and/or in parallel.

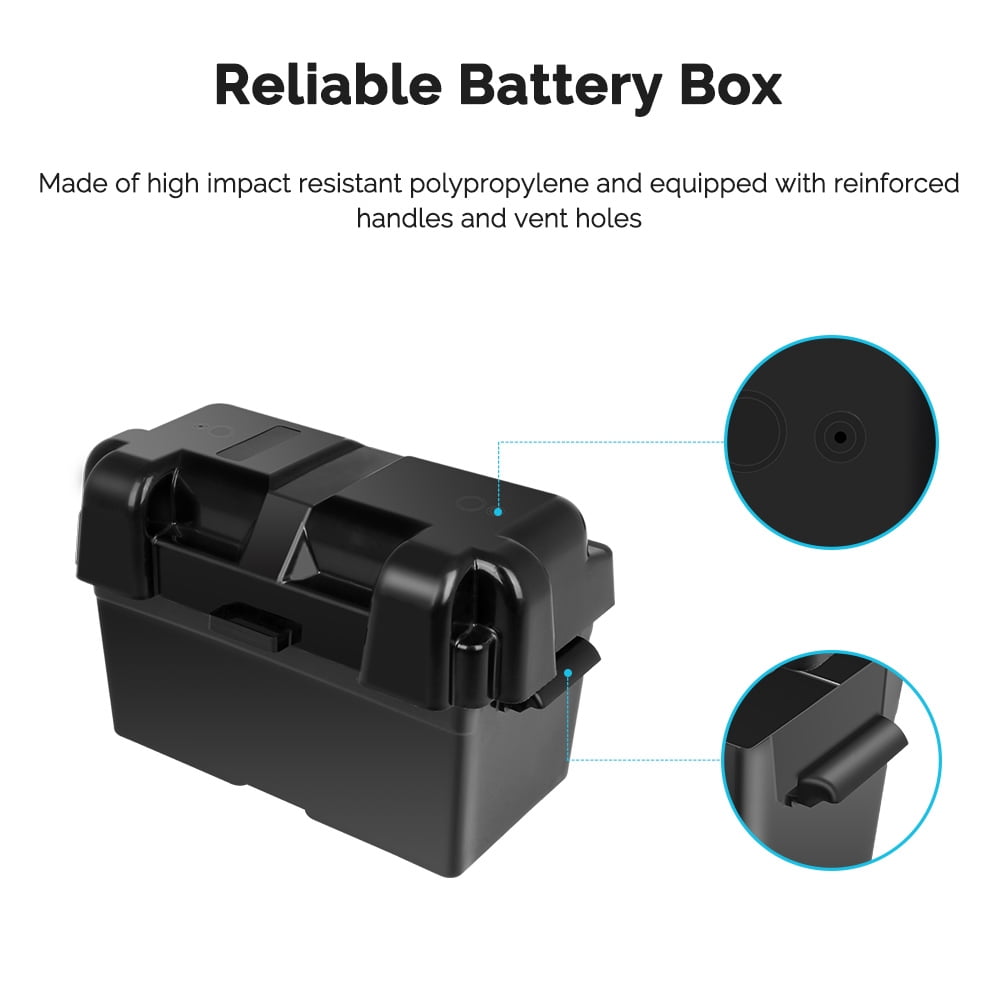

【Comes with A Rugged Battery Box】 Made with high impact-resistant material to withstand harsh environments, this Heavy-Duty Battery Box provides full protections for the Renogy Deep Cycle Battery, including reinforced handles to prevent cracking during battery relocation and vent holes for adequate battery ventilation.

【Maintenance Free & No Leakage】 This battery is comprised of gel instead of liquid, so there is no maintenance required to keep the battery working properly. Manufactured with an advanced valve regulated technology, Renogy Deep Cycle Hybrid GEL Batteries save you from acid leakage and frequent maintenance.

【Extended Service Lifetime】 Corrosion-resistant grids enable a design life of up to 12 years in standby applications and more than 750 charge/discharge cycles at 50% DOD in cyclic applications.

【Longer Shelf Life】 Made of high purity materials, Renogy Deep Cycle Hybrid GEL Batteries reduce the monthly self-discharge rate below 3% at 77℉ (25℃), which is 5 times lower than their Flooded counterparts. No need to recharge the dormant battery frequently.

【Excellent Deep Discharge Recovery 】 Proprietary plate composition and patented gel electrolyte ensure excellent recovery capability after excessive deep discharge. This means that GEL batteries can discharge more and still be recharged like new. Unlike Flooded batteries, they are not allowed to discharge too much.

Specifications:

Battery

Nominal Voltage:12V

Rated Capacity: 100Ah@20hr-rate to 10.5V @ 25℃ / 77℉

Reference Capacity:  C3: 74.4Ah  C5: 83.5Ah  C10: 95.0Ah  C20: 100.0Ah

Equalization Voltage: 14.2V (25℃ / 77℉)

Max Discharge Current: 1000A (5 seconds)

Max Charge Current: 30A

Self Discharge Rate: ≤3% per month at 25℃ / 77℉

Terminal Bolt Size: M8 x 1.25 x 16 mm

Dimension: 12.9 x 6.8 x 8.7 in

Weight: 63.9 lbs.


Battery Box

Material: PP

Internal Dimension: 13.8 x 7.1 x 10.4 in / 350 x 180 x 265 mm

External Dimension: 16.7 x 9.7 x 10.6 in / 425 x 247 x 270 mm

Weight: 2.4 lbs

Certifications:MSDS

Package Includes

1 X 12V 100Ah Deep Cycle Hybrid GEL Battery

2 X Terminal Bolts

1 X Battery Box

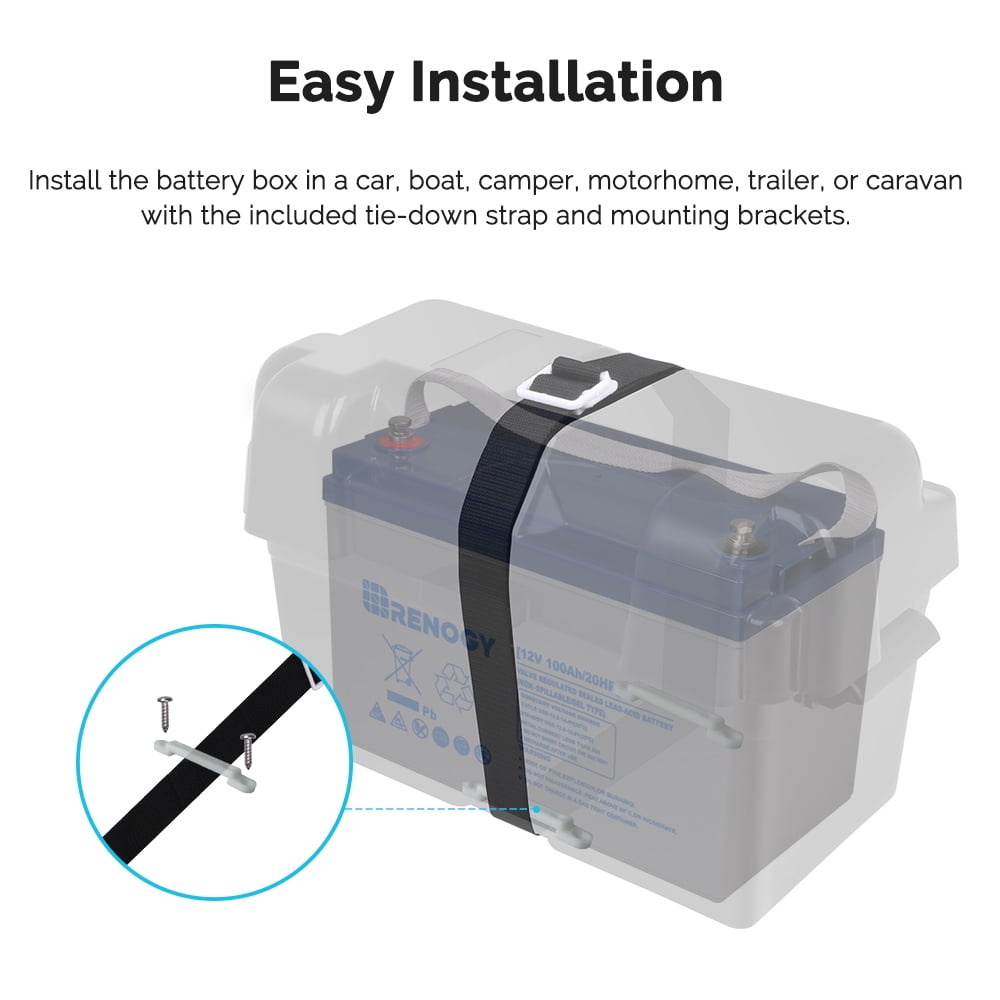

1 X Tie Down Strap

2 X Mounting Brackets

4 X Mounting Screws

NOTE:

● We recommend only using consistent battery types. DO NOT mix Hybrid GEL and Pure GEL batteries together as it will reduce overall performance and may cause damage to the battery bank.

● To avoid cycle-life shortening, we recommend not discharging the battery below 50%.

● It is highly recommended to use a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.

● We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so. DO NOT install the battery upside down.
